Silicon Epitaxy

Emerging from CMOS technology, silicon epitaxy is nowadays also at the heart of many MEMS products. State of the art pressure sensors are manufactured by growing a high quality single-crystal epitaxial layer over a porosified area, that reforms into a buried cavity (APSM technology). With inertial sensors, Bosch uses the epitaxial-reinforced poly-silicon (EpiPoly) as functional layer. Consequently this is available in a wide variations of processes including excellent thickness and stress control.

Silicon Epitaxy
20µm EpiPoly layer grown over patterned substrate (after CMP)

Technical Details

  • Epitaxial growth of 1µm – 100µm
  • Various deposition gases - silane, DCS, TCS
  • n-type and p-type in-situ doping, e.g. 1e15, can be increased up to 1e20 with ex-situ doping
  • In-line metrology of thickness, doping and stress
  • Stress-management for in- and out-of-plan stress
  • Thickness tolerance 1s < 1.5%

Doping

Dose: 1e11 to 1e16

Energy: 7 – 3,000 keV

  • Phosphorus
  • Arsen
  • Boron
  • Antimony
  • Nitrogen
  • More specialty materials for specific applications

Anneals

Bosch offers a variety of state of the art anneal furnaces, like ovens and RTAs.

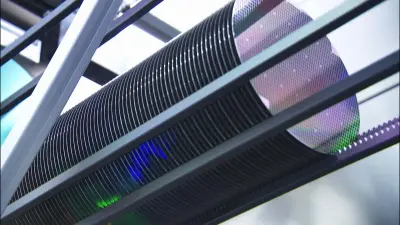

Furnace
Furnace
  • Vertical and horizontal furnaces, up to 1,200°C
  • Metal anneals
  • UV hardening

Gases:

  • Forming gas
  • Pure hydrogen
  • Nitrogen
  • and others
