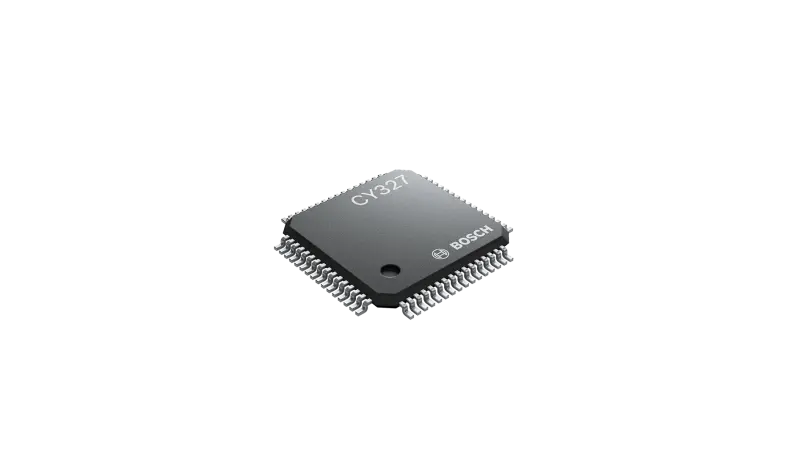

CY327 | System basis IC for engine or transmission control units

System supply and communication interfaces combined in one chip

Suitable for many microcontrollers. Switched mode μC core supply, adjustable from 0.9V to 1.525V.

A configurable pre-regulator keeps the ECU running until as low as 3V. A switched mode buck converter for the microcontroller core reduces the power dissipation of your ECU by up to 4W.

Benefits

Integrated CAN and LIN interface

VDA E-gas compliant

3 level Watchdog for VDA 2.0 compliance

Technical Features


Type	System basis IC
Package	TQFP64_ePad TQFP100_ePad
Features	Buck / boost pre-regulator switched mode supply for µC core voltage Advanced 3 level watchdog operating range 3 V to 40 V Stop counter functions very quiescent current
Output voltages	System: 5 V / 450 mA, 3.3 V / 300 mA, 5 or 3.3 V / 250 mA Core supply 0.9 – 1,525 V / 1.2 A switch-mode Sensors: 3 x 5 V
Interfaces	SPI, 16-bit (3.3V) 1 x CAN 1 x LIN
Input	Ignition 3 wake up pins Wake up on CAN
Outputs	Main relay control: 1 x LSPS
VDD typ. [V]	14
Tj min [°C]	-40°C
Tj max [°C]	150°C

TQFP64_ePad (10 × 10 mm)

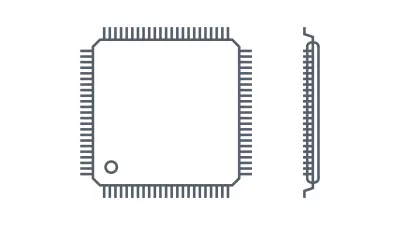

TQFP100_ePad (14 × 14 mm)
