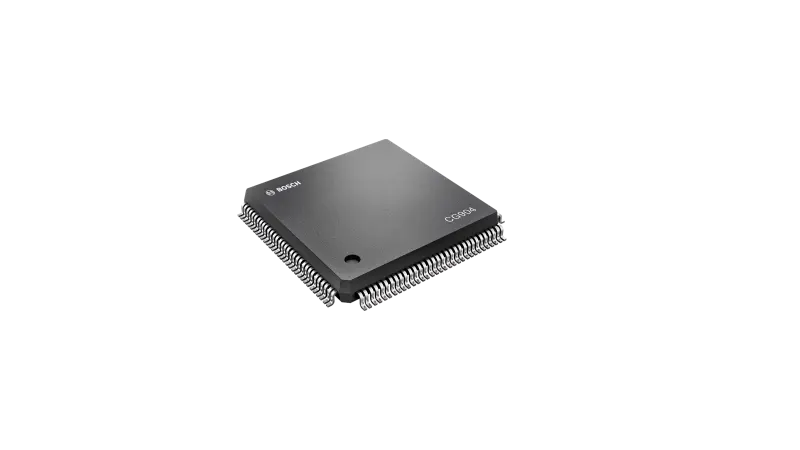

CG902 | 8 channel pyro fuse driver

5 Firing modes for optimum adaption to the pyro fuses

CG902 provides additional safety function for electrical systems in (H)EVs. Controlled by the battery management system, CG902 can ignite up to eight pyro fuses.

The pyro fuses safely disconnect the HV battery from the vehicle's electrical system. CG902 can also provide power to the battery management's microcontroller and monitor the microcontroller for proper function.

Benefits

Driver for up to four pyro fuses

High side & low side drivers for highest system safety

Power supply for system microcontroller

Target applications

HV battery safety disconnection in (H)EVs

Pyro fuse activation for HV isolation

技术特点


类型	高温保险丝驱动器
封装	TQFP128_ePad
特点	供电能力： 3.3 V / 1.3 V (微控制器，车载传感器) 5 V (CAN) 6.7 V (外围传感器) 23.75 / 33 V (能量储备和火线引信) 增强的复杂安全概念（包括传感器数据监控）微控制器看门狗全自动诊断：监测电压（包括VHx）和过热，SVR诊断，内置传感器测试，CER诊断，功率级和爆管诊断，交叉耦合诊断，连接器电容器诊断，STB和STG诊断每通道2个独立的7位触发电流计数器（最长时间：3.2 ms） PWM控制的GPIO
点火回路	8
点火模式	可通过SPI编程的点火模式：静态模式 I: 1.85 A for 0.7 ms 静态模式 II: 1.75 A for 0.5 ms 静态模式 III: 1.2 A for 2 ms 动态模式 V: 1.75 A for 0.7 ms, automatic extension to 1.2 A for 2.0 ms 动态模式 VI: 1.5 A for 1.5 ms, automatic extension up to 3.0 ms
接口	SPI, 32-bit (3.3 V), K-Line/LIN
VDD typ. [V]	3.3
VVZP typ. [V]	14
VVER typ. [V]	23.75 or 33 (programmable)
Tj min [°C]	-40°C
Tj max [°C]	150°C

TQFP128 _ePad (14 × 14 mm²)
