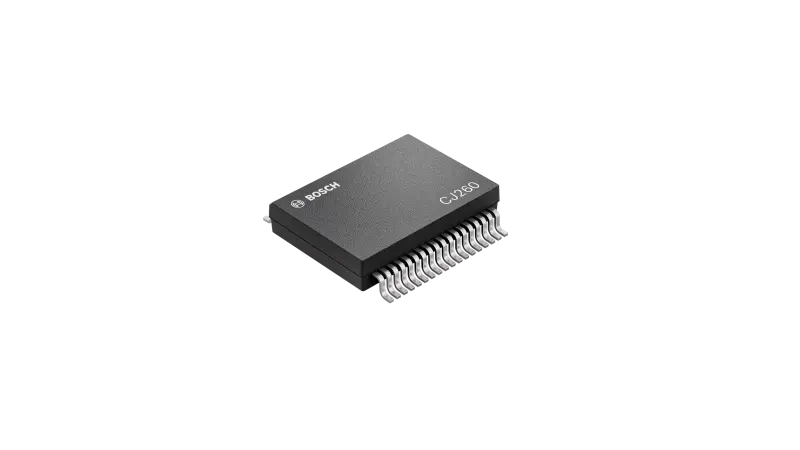

CJ260 | Integrated B6 bridge for BLDC actuators

PMOS high-side driver
No charge-pump necessary for high-side driver activation

CJ260 connects BLDC motors directly to a microcontroller without the need for external power stages.

Full control over three half bridges via parallel inputs or SPI commands.


类型	单芯片B6桥驱功率可达60W

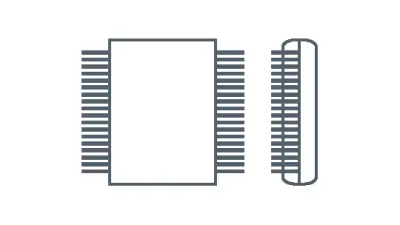

封装	Power SS0-36
特点	RDSon 最大值: 540 mΩ (@3 ARMS, 150 °C) Iout 最大值: 3 ARMS fPWM最大值: 20 kHz 电流限制功能广泛的保护功能诊断功能适用于ASIL-B系统
输出	三相输出
接口	SPI, µsec 总线
Vbat typ [V]	4,5 - 28
Tj min [°C]	-40°C
Tj max [°C]	150°C
