CY320 | System basis IC for engine or transmission control units

3 Level watchdog
for VDA 2.0 compliance

System supply and CAN transceiver combined in one chip.

CY320 is a high integrated power circuit enhanced by an integrated and certified CAN transceiver.

Suitable for Infineon Audio 2 processors thanks to correlated softstart of all regulators.


类型	系统基础芯片

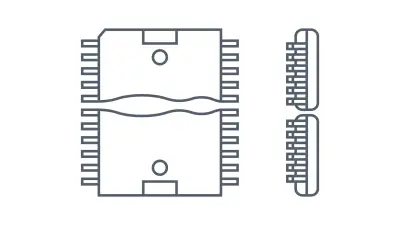

封装	PSO36
特点	2种预调节器模式（开关、线性）高级3级看门狗 µC重置和系统重置停止计数器功能
输出电压	系统: 5 V, 3.3 V, 2.6 V, 1.5 V 传感器: 3 x 3.3/5 V 可编程
接口	1 x CAN 1 x ISO SPI, 16-bit (5V)
输入	点火唤醒
输出	主继电器控制: 1 x LSPS
VDD typ. [V]	14
Tj min [°C]	-40°C
Tj max [°C]	150°C
