What is semiconductor manufacturing?

Semiconductor manufacturing is the process of fabricating electronic devices on silicon wafers or other semiconductor substrates through a series of chemical, physical, and lithographic steps. The process transforms raw semiconductor materials into functional integrated circuits, discrete devices, and sensors by precisely controlling the deposition, patterning, and modification of thin films at microscopic scales. Manufacturing occurs in specialized cleanroom facilities called fabrication plants (fabs) and involves hundreds of individual process steps across multiple weeks of production time.

Where is semiconductor manufacturing used?

Semiconductor manufacturing serves virtually all electronic applications, from automotive systems to consumer devices and industrial equipment. In automotive applications, manufacturing processes create power semiconductors for electric vehicle inverters, MEMS sensors for airbag systems, and radar chips for driver assistance functions. The process requirements vary significantly based on the target application, with automotive-grade devices requiring extended temperature ranges (-40°C to +150°C) and enhanced reliability testing compared to consumer electronics. Manufacturing facilities specialize in different technology nodes, device types, or market segments to optimize their process capabilities and yield performance.

How does semiconductor manufacturing differ from other manufacturing processes?

Semiconductor manufacturing differs fundamentally from traditional manufacturing in its precision requirements, process complexity, and contamination control. Unlike mechanical assembly or bulk material processing, semiconductor fabrication operates at nanometer scales where individual atoms matter for device performance.

Aspect	Semiconductor Manufacturing	Traditional Electronics Manufacturing
Aspect Process scale	Semiconductor Manufacturing Nanometer-level precision	Traditional Electronics Manufacturing Millimeter-level precision
Aspect Environment	Semiconductor Manufacturing Class 1-10 cleanrooms	Traditional Electronics Manufacturing Standard factory environments
Aspect Lead time	Semiconductor Manufacturing 8-16 weeks typical	Traditional Electronics Manufacturing Days to weeks
Aspect Process steps	Semiconductor Manufacturing 200-1000+ individual steps	Traditional Electronics Manufacturing 10-100 assembly steps

The key distinction lies in the additive, subtractive, and modification processes that build devices layer by layer on semiconductor substrates, compared to the assembly of pre-manufactured components in traditional electronics production.

How is Bosch positioned in semiconductor manufacturing?

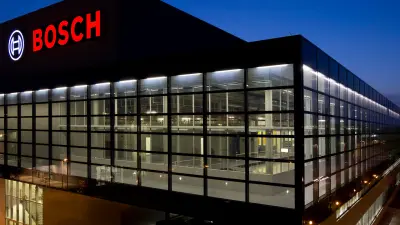

Bosch operates semiconductor fabs, focusing on automotive-grade devices and consumer sensors. The company manufactures silicon carbide power semiconductors, MEMS sensors, and integrated circuits. Bosch maintains both 200mm and 300mm wafer fabs, with facilities optimized for automotive qualification requirements including AEC-Q100 standards. The manufacturing operations support both internal product development and foundry services for external customers requiring automotive-grade semiconductor solutions.

Frequently Asked Questions

What does semiconductor manufacturing involve?

Semiconductor manufacturing involves frontend wafer processing to create devices, followed by backend assembly and test operations. Frontend processes include lithography, etching, deposition, and ion implantation to pattern and modify semiconductor materials. Backend processes package individual dies into protective housings and perform electrical testing to ensure functionality and reliability.

What are front-end vs back-end steps?

Frontend manufacturing occurs at the wafer level and includes all processes that create the actual semiconductor devices on silicon substrates. Backend manufacturing involves dicing wafers into individual chips, mounting them in packages, wire bonding or flip-chip connections, and final testing. The handoff point between front-end and back-end is typically after wafer-level electrical testing.

What is a fab?

A fab is a fabrication facility containing the cleanrooms, process equipment, and support systems required for semiconductor manufacturing. Fabs are classified by their technology node capabilities (such as 28nm, 65nm, or 180nm minimum feature sizes) and wafer size (typically 200mm or 300mm diameter). They require specialized air filtration, chemical delivery systems, and vibration isolation to maintain the controlled environment necessary for nanoscale device fabrication.

What makes a facility ‘state of the art’?

Manufacturing facilities achieve advanced capabilities through smaller technology nodes, larger wafer sizes, and specialized process technologies for specific device types. Advanced fabs typically operate 300mm wafers with technology nodes below 65nm, while specialized facilities may focus on compound semiconductors, MEMS processes, or power device technologies. The definition varies by market segment and application requirements rather than following a universal standard.

What are typical bottlenecks and constraints?

Manufacturing constraints include lithography tool availability, cleanroom capacity, and yield optimization for new process technologies. Equipment availability often limits production capacity, particularly for specialized processes like ion implantation or chemical vapor deposition. Yield learning curves for new products or technology nodes create additional throughput constraints until process optimization is complete.
