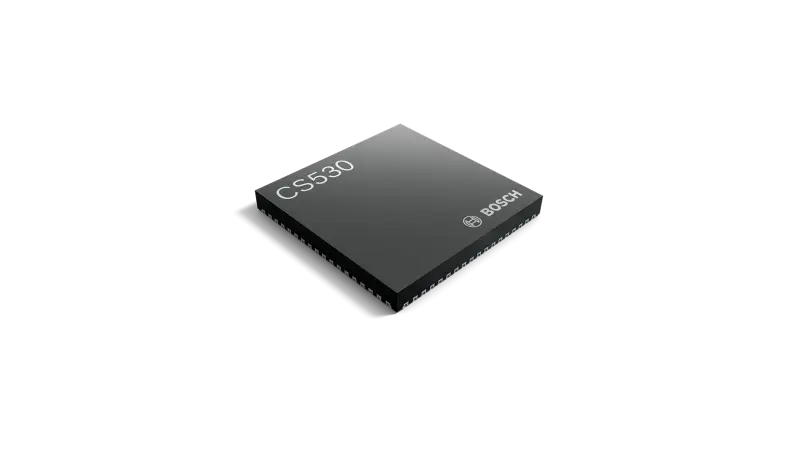

CS530 | Power management IC for Radar SoCs SX600 / SX601

CS530 is a Power Management Integrated Circuit (PMIC), with power supplies tailored to supplying one SX600 or SX601 radar SoC and associated additional circuitry such as CAN and ethernet transceivers, flash memory etc. in automotive applications.

The CS530 is supplied by an external pre-regulator, which is controlled via the CS530. The choice of an appropriate pre-regulator allows the application to adopt to different use-cases, such as the battery voltage of the vehicle.

The pre-regulator can be chosen seamlessly between 4.3V (for lower power dissipation) and 5.0V (allowing to power an additional CAN transceiver).

Benefits

Extended monitoring functions (over-or undervoltage, over-temperature, overcurrent) and according reactings (from diagnostic output to shutdown)

Developed in compliance with the ISO26262 standard, allowing to reach ASIL B on system level

On-chip general purpose ADC (12bit) for monitoring external voltages on 2 input pins

Target applications

Companion PMIC for the Bosch radar SoC family SX60x

Technical Features

Type	Power management IC
Type Package	Power management IC QFN64 9 mm x 9 mm with exposed die-pad
Type Features	Power management IC 3x step down converters with integrated half-bridge power-stages SR0V8: 0.8V @ 3.0A SR0V8: 0.8V @ 3.0A0V8A: 0.8V @ 2.5A SR1V8: 1.8V @ 1.0A One 3.3V LDO with 350mA current capability One 3.3V LDO capable of sleep mode operation 2 mA max. average current capability Low stand-by current consumption Current limitation DIS pin for driving an external NPN transistor for discharging the capacitors at the battery pins (for T15 applications) On-chip general purpose ADC (12bit) for monitoring external voltages on 2 input pins
Type Safety features	Power management IC Developed in compliance with the ISO26262 standard, allowing to reach ASIL B on system level Temperature monitoring and over-temperature shutdown Voltage monitoring Over-current protection
Type Communication Interface	Power management IC 32bit SPI
Type Tj min [°C]	Power management IC -40
Type Tj max [°C]	Power management IC 150
