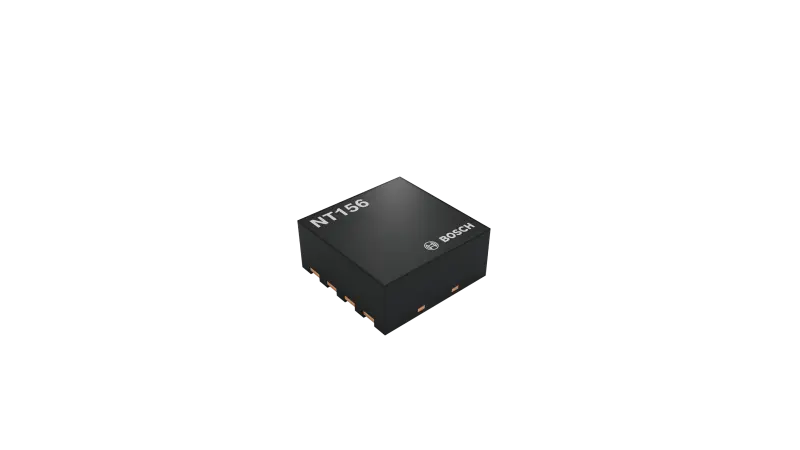

NT156 | CAN SIC XL transceiver

Data transfer rates of up to 20 Mbit/s in the CAN network

The NT156 is a bidirectional transceiver for signal conditioning and processing in connection with a CAN XL controller.

Data rates of up to 20 Mbit/s are supported using either shielded or non-shielded pair of lines.

NT156 complies with the following standard:

ISO 11898-2
CIA 610-3 (CAN XL)
IEC 62228-3

Benefits

Many diagnostic and protective features

Undervoltage detection at VCC and VIO pins

Thermal overheating

Target applications

Transceiver for pure CAN SIC XL or mixed CAN FD / SIC / XL networks

Technical Features


Available IO voltage level	2.9 V – 5.5 V
Voltage limits on CANH, CANL	±40 V
Remote wake-up	via CAN bus
Package	HVSON8
Released for sample ordering	Q1.2025
Tj min [°C]	-40
Tj max [°C]	150
