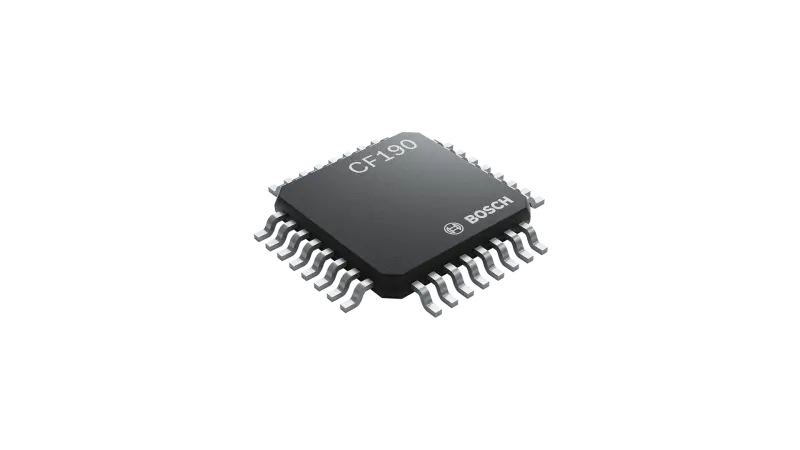

CF190 | PSI5 interface for digital satellite sensor

Up to 4 sensors per channel in PSI5 bus mode

CF190 provides two PSI5 (V1.3) channels for connecting airbag crash sensors to the system's microcontroller.

Each channel can be set to point-to-point mode (one sensor) or bus mode (max. four sensors).

CF190 provides power to satellite sensors and serves as digital communication interface between microcontroller and sensor.


Type	PSI5 receiver with 2 channels

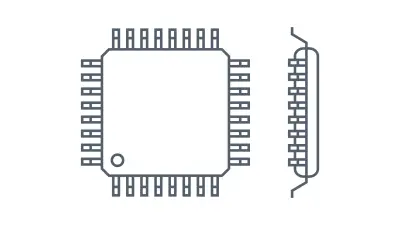

Package	LQFP32
Features	Max. 8 sensors Bi-directional communication Bosch AB, EM and Open SPI protocol Integrated monitoring of voltages and overtemperature Integrated diagnosis
Peripheral sensor interfaces	2 x PSI5 (V1.3)
Interfaces	SPI ( 3.3V or 5V)
VDD typ. [V]	3.3 V or 5 V
VVAS typ. [V]	6.35 – 11 V
VSYNC typ. [V]	(VAS + 4.6 V)…35 V
VER typ. [V]	(VAS + 3.5 V) – 35 V
Tj min [°C]	-40°C
Tj max [°C]	150°C
