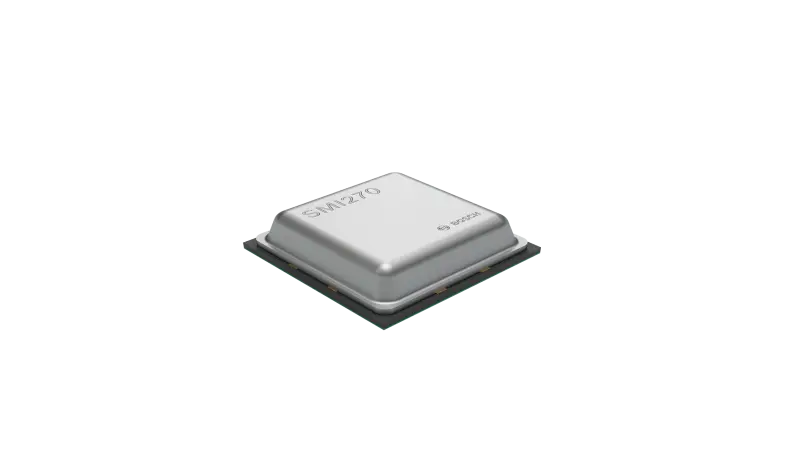

SMI270 | Inertial sensor with ASIL B for semi-autonomous driving

For hands-free driving
detects changes in the vehicle position

SMI270 is a 6in1 inertial sensor with ASIL B rating. The sensor is capable of measuring all 6 degrees of freedom: yaw/pitch/roll rate and acceleration in x/y/z directions.

Typical applications include L2 semi-autonomous driving, hands-free driving and positioning applications, and the integration into camera, radar, or lidar devices.

Benefits

On-board safety controller for monitoring of sensor functions

Developed according to ISO26262 for systems with safety targets up to ASIL B

Target applications

L2 semi-autonomous driving

Hands-free driving

Technical Features
Type
Combined inertial sensor
Package
Open cavity LGA, 5 x 5 mm²
Sensing axes
X, Y, Z (Ω),
X, Y, Z (a)
Range
±300 or ±500 °/s (Ω)
±4 g or ±16 g (a)
Interface
SPI (out-of-frame)
Data resolution
16-bit (SPI)
Sensitivity
100 or 50 LSB/°/s
8,000 or 2,000 LSB/g
Sensitivity tolerance
±2 % (Ω)
±2 % (a)
Total offset error
3 °/s
Supply voltage
3.3 V
Supply current
< 5 mA
Operating temperature
-40 to 125 °C
