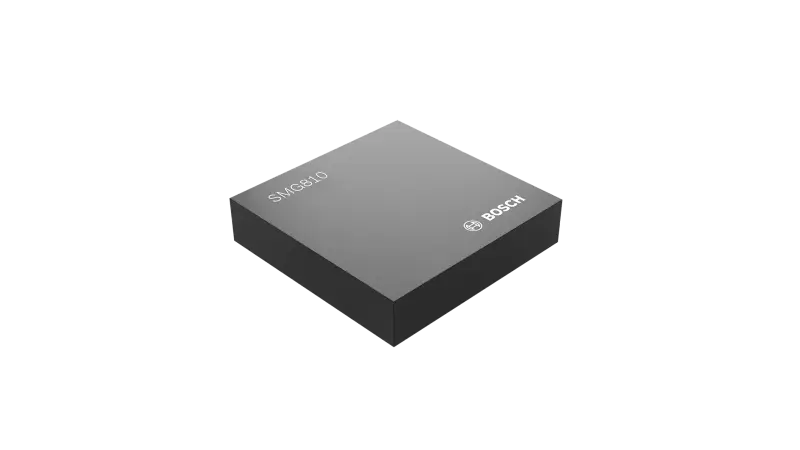

SMG810

Reliable operation due to excellent vibration resistance

SMG810 is a single axis (Ωx) gyroscope (gyro) for rollover applications. It s derived from the successful SMI8xy inertial sensor familiy and detects the chassis roll rate during a rollover event. The sensor communicates via a digital 16-bit SPI interface.

Benefits

Excellent vibration robustness and offset stability

Developed for systems with requirements up to ASIL D

Target applications

Roll-over sensing

Technical Features
Type
Angular rate sensor
Package
BGA64
Sensing axes
X (Ω)
Range
±300 °/s (Ω)
Interface
SafeSPI
Data resolution
16 bit (SPI)
Sensitivity
100 LSB/°/s (Ω)
Tolerance
±3% (Ω)
Supply voltage
3.3 V, 5 V or 6.7 V
Supply current
< 18 mA
Operating temperature
-40°C to 125°C
  • Ball grid array package (BGA): 7 mm x 7 mm x 1.5 mm
    Ball grid array package (BGA): 7 mm x 7 mm x 1.5 mm
