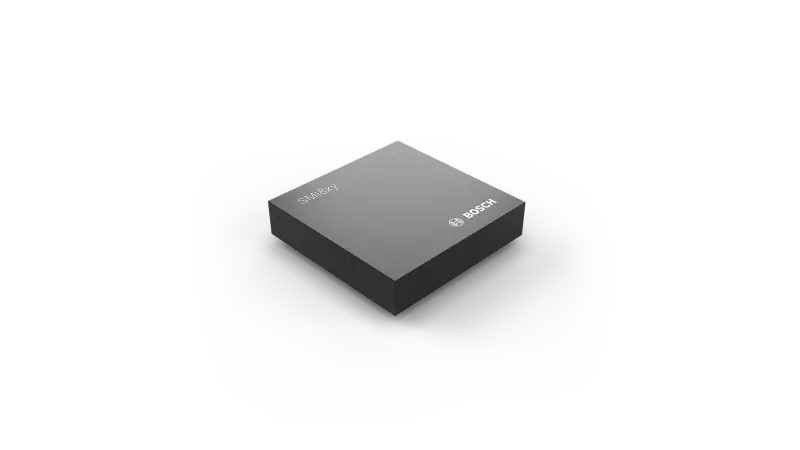

SMI800
Combined inertial sensor for vehicle dynamics control
Application & Technical Summary
SMI800 is especially designed to support safety and ADAS functions with ASIL rating: ESP®, adaptive cruise control and hill-hold control. The SMI800 is a three axis sensor measuring yaw rate (Ωz) and acceleration (axy).
It provides all relevant inertial signals in just one sensor. Subsequent system algorithms will use these sensor signals to compute the dynamical driving state of a vehicle or its position.
Product benefits
- Excellent vibration robustness and offset stability
- Developed for systems with requirements up to ASIL D
Target applications:
- ESP®
- Adaptive cruise control
- Other safety and ADAS functions
reliable operation
due to excellent vibration resistance
Technical Features
|
Type
|
Combined inertial sensor
|
|
Package
|
BGA64
|
|
Sensing axes
|
Z (Ω),
X, Y (a) |
|
Range
|
±300 °/s (Ω)
±6 g (a) |
|
Interface
|
SafeSPI
|
|
Data resolution
|
16-bit (SPI)
|
|
Sensitivity
|
100 LSB/°/s (Ω),
5,000 LSB/g (a) |
|
Sensitivity tolerance
|
±3 % (Ω)
±3 % (a) |
|
Total offset error gyro
|
±3 °/s
|
|
Supply voltage
|
3.3 V, 5 V or 6.7 V
|
|
Supply current
|
< 28 mA
|
|
Operating temperature
|
-40 to 125 °C
|
-
Ball grid array package (BGA): 7 mm x 7 mm x 1.5 mm
