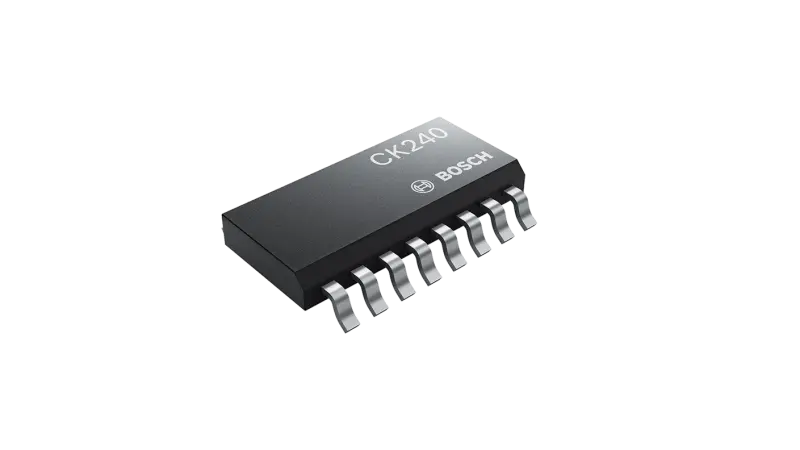

CK240 | 4-channel ignition driver for external igniters

CK240 | 4-channel ignition driver for external igniters

Ignition Driver
Protected outputs
All ignition outputs short circut protected to GND and Ubatt

CK240 is a driver for up to four external igniters, typically located inside the ignition coil assembly at the spark plug.

Ignition driver with extensive diagnosis functions. All outputs are protected from short circuiting.

Benefits

Wiring diagnosis result is provided via SPI interface

Individual detection for each output

Ignition inhibited in case of undervoltage or reset condition

技术特点

类型
用于外部点火级的4通道反向驱动
封装
  • 裸片
  • SOIC16w
特点
  • 短路保护
  • 诊断
  • 接线诊断
通道
4
控制接口
SPI
Tj min [°C]
-40°C
Tj max [°C]
150°C

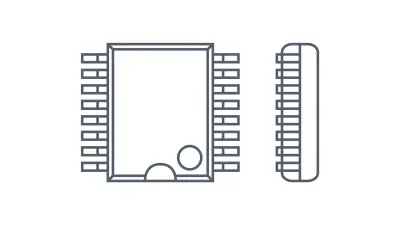

  • SOIC16w (7.5 × 10.3 mm)
    SOIC16w (7.5 × 10.3 mm)
