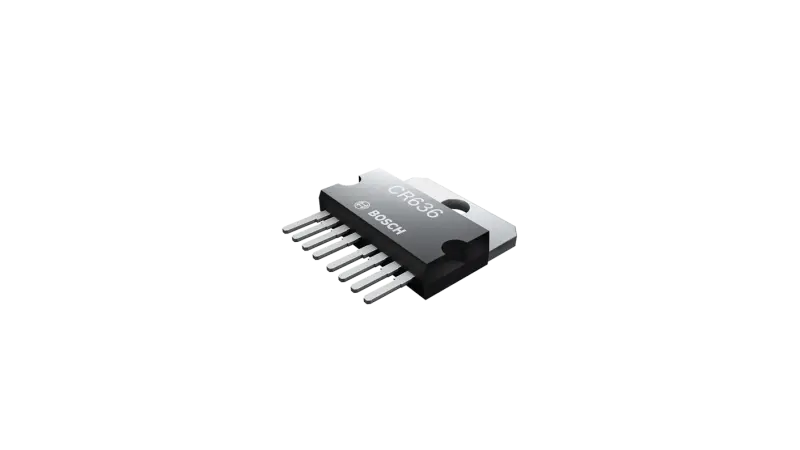

CR636 | Alternator regulator for 14V systems with RVC interface

11.0 – 15.5 V set voltage via PWM interface

CR636 regulates the output voltage of a 14 V alternator to a constant value.

The regulator continuously senses the alternator’s output voltage, rpm, temperature, excitation current.

It adjusts the excitation current to keep the output voltage on a constant level. Via PWM commands, the output voltage can be set to any desired value within the given range.

Benefits

Fully integrated alternator regulator

Pulse-width modulated regulator

Load response function

技术特点


类型	14 V交流发电机电压调节器
封装	MultiWatt8
操作的稳定性	如果通讯丢失，从V端唤醒
保护交流发电机和电池的功能	在极端温度下关闭功率管 DF功率管的短路保护/恢复
特点	高边DMOS通过固定频率PWM调节发电机场（DF） DF上集成超高速续流MOSFET DF占空比范围高达90 % LR低速装载 LR Boost和快速装载过压的主动处理接受28V的跳跃启动
通信特点	RVC接口根据GM spec，GMW14036 和更新版 GMW8778
工作电压	6.5 – 18 V
扩展工作电压	4 – 37 V
设定电压或B+	11.0 – 15.5 V
设置	PWM
调节	数字信号
续流	主动
加载响应	是
高温关闭	是
ESD 处理	所有引脚：±8kV（HBM，1.5 kOhm，100 pF至GND）
现场保护	是
Tj 最小值 [°C]	-40°C
Tj 最大值 [°C]	150°C

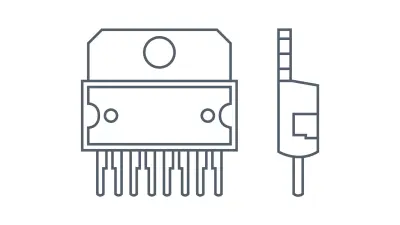

MultiWatt 8 (in-line)

CR636 | Alternator regulator for 14 V systems with RVC interface

11.0 – 15.5 V set voltage via PWM interface

Benefits

Fully integrated alternator regulator

Pulse-width modulated regulator

Load response function

技术特点
